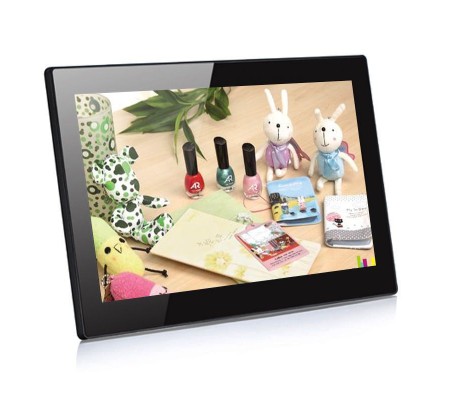

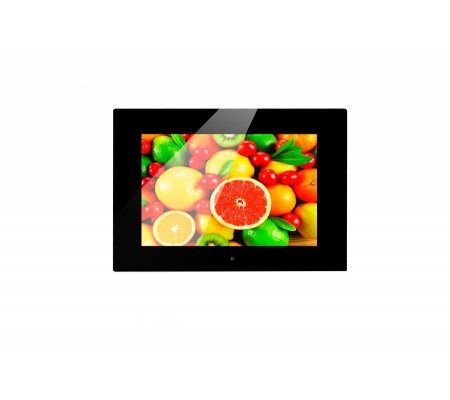

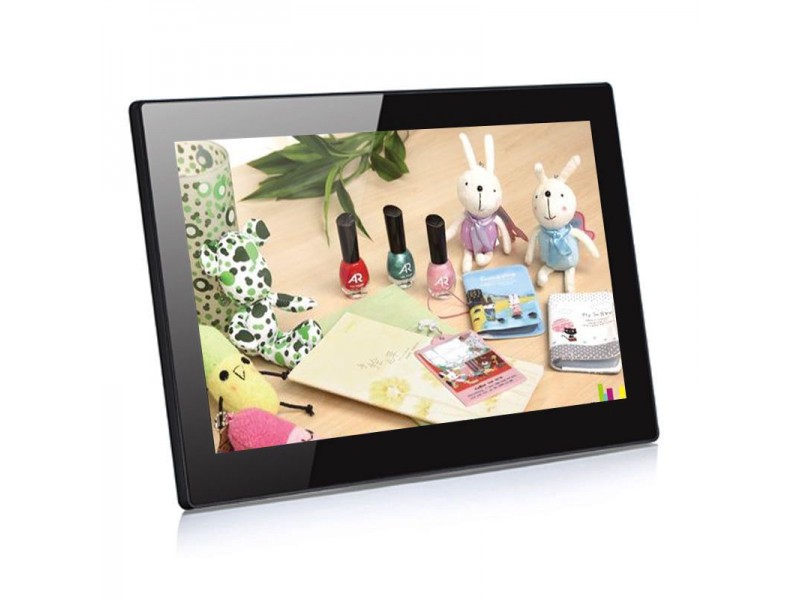

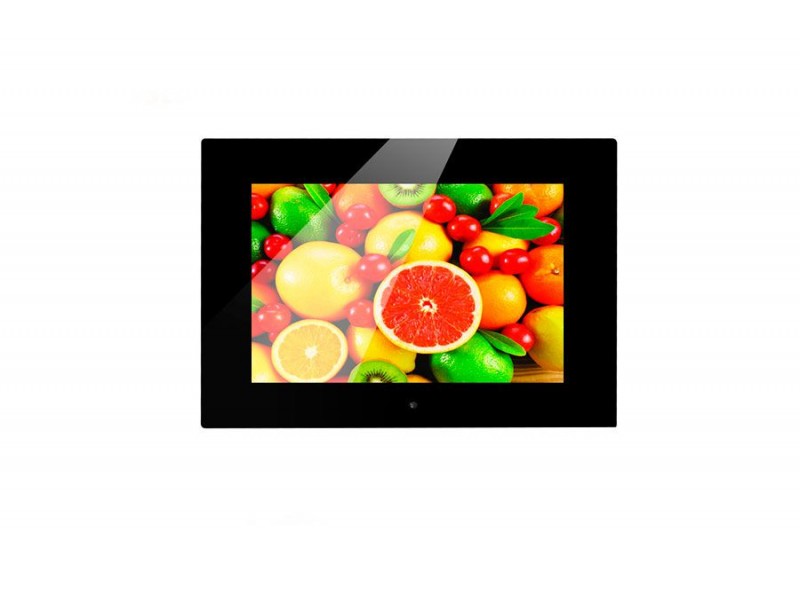

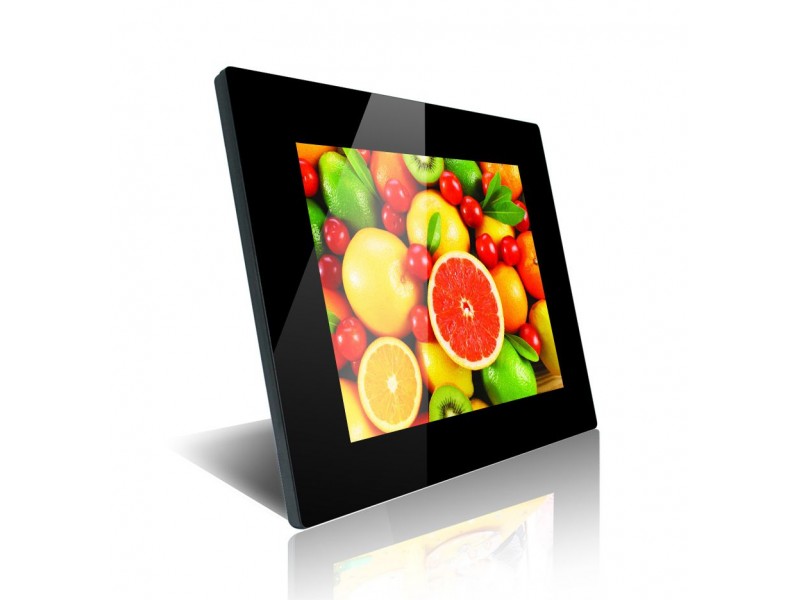

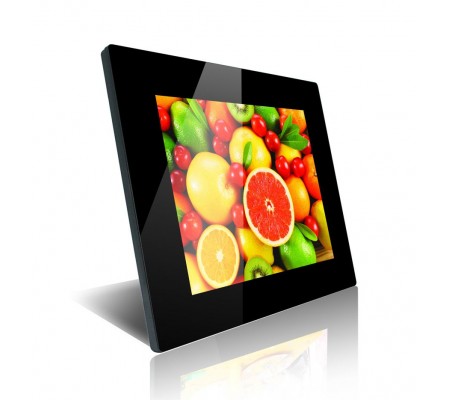

What really distinguishes this electronic sign from other similar systems is a powerful built-in media player for advertising. It gives you the ability to play many formats of media files – the main of which are AVI, MPG, JPG, and MP3. The user simply takes any media file, copy it to a USB or SD flash drive and inserts it in this advertising digital frame. That's all you need to play the audio, video and photo files on the DISHINE-1201-BLK advertising monitors. Moreover, you have the option to choose how to install this digital signage display, either vertically or horizontally, it works in both landscape and portrait orientation.

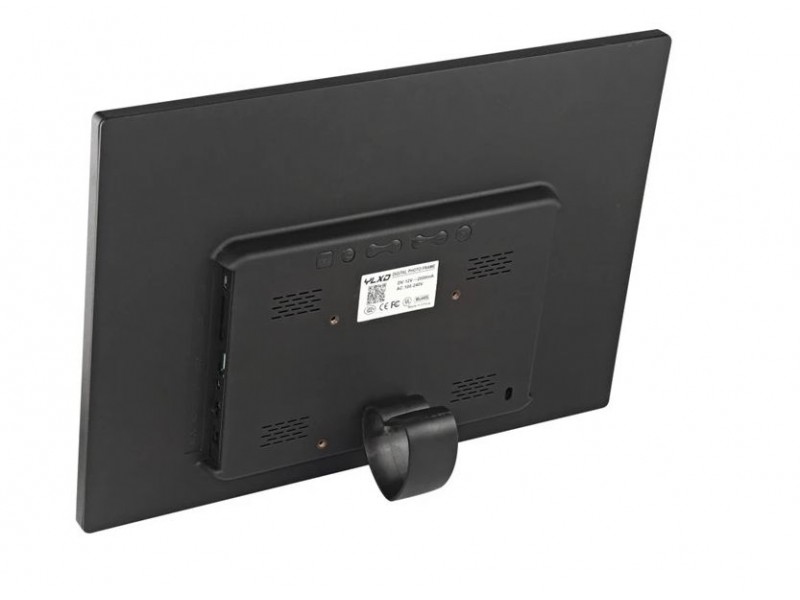

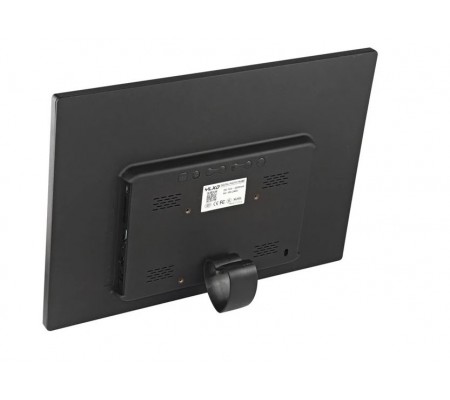

Each digital signage signage screen has a removable rear foot for mounting on the window or at the reception in landscape format. In addition, on the rear panel there are mounting holes for fastening to the bracket VESA75. Finally, digital signage signage screen has a traditional holes for easy mounting on the wall like a regular painting. The remote control included in the delivery package, designed for quick control over the content, control the settings such as brightness, transition slides, volume and so on.
Digital Signage 12 inch screen allows you to use DISHINE-1201-BLK as an electronic poster with a minimal set of functions. Because this model supports two ways of installing the wall: with bracket for TV standard VESA75 (holes 75x75 mm), and on traditional hooks for paintings – vertically and horizontally!

Main functions

  • Auto start playing when power cord connected, no need to do anything manually
  • Repeat playlist automatically 24x7x365
  • Auto restart playing after any power supply issue
  • Auto power on/off by schedule
  • Show clock and calendar available

Main features

  • Good looking design, extra quality ABS plastic
  • Can be wall mounted or installed on table, reception, shop shelf
  • Anti-theft door or cover protects against memory card theft
  • Multi-language OSD menu protected with password
  • Built-in stereo speakers 2x2W or 2x4W
  • Playlist management software available

Interface

  • SD flash card
  • USB flash
  • Audio jack

 Optional

  • Built-in memory by request

Specification DISHINE-1201-BLK

General
Application Indoor Advertising monitor, Advertising display, LCD advertising player, Digital signage
Housing material ABS Plastic
Color Black, White (other by request)
Power input 110-250V / 5V
Power consumption 5W
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ...
Speakers 2x2W
Internal memory No
Optional internal memory 2-32GB
Storage temperature -5...+45C (23...113F)
Operation temperature +10...+45C (50...113F)
Flash memory support SD, SDHC, MMC/MS, USB flash
Flash memory anti-theft Cardreader cover with screw
Mount method Wall, Stand, VESA75 Mounting

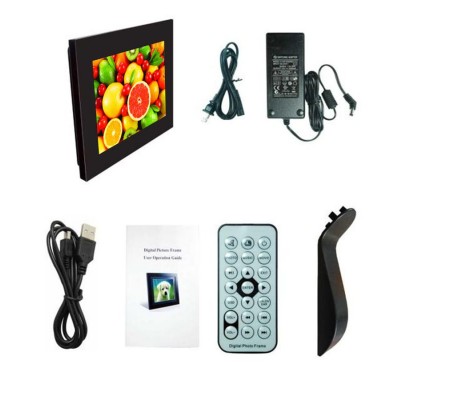

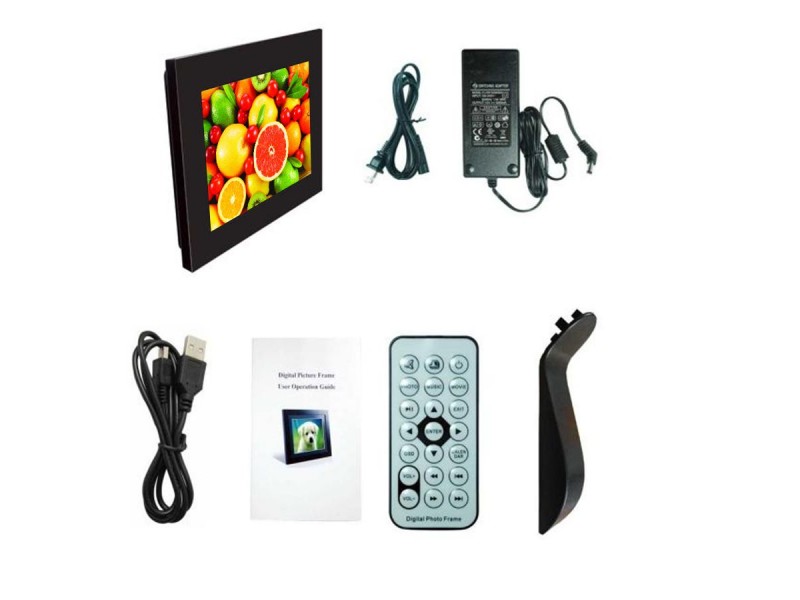

Accessories Stand, Power supply, Remote Control, Manual
May also need SD/SDHC/MMC/MS or USB flash
Screen
Screen size 12 inch
Aspect ratio 16:9
Available sizes 10, 12, 15, 17, 19, 22, 24, 32 inch
Screen protection Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch)
Screen type LCD
Optional screen type LED, IPS
Resolution 1024x768
View angle H/V 170/165
Brightness 250 cd/m2
Contrast ratio 500:1
Supported colours 16.7 million
Response time 5 ms
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4
Picture files JPG, GIF, BMP
Audio files MP3, WMA, OGG, WAV, AAC

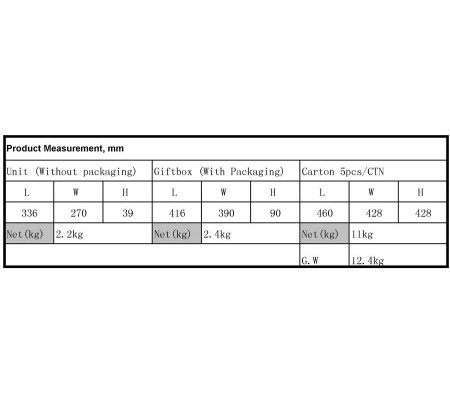

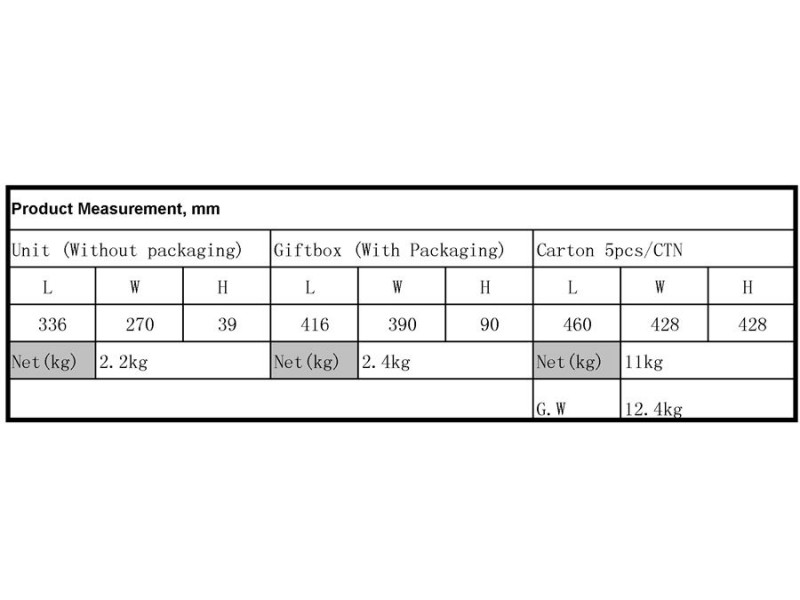

Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
