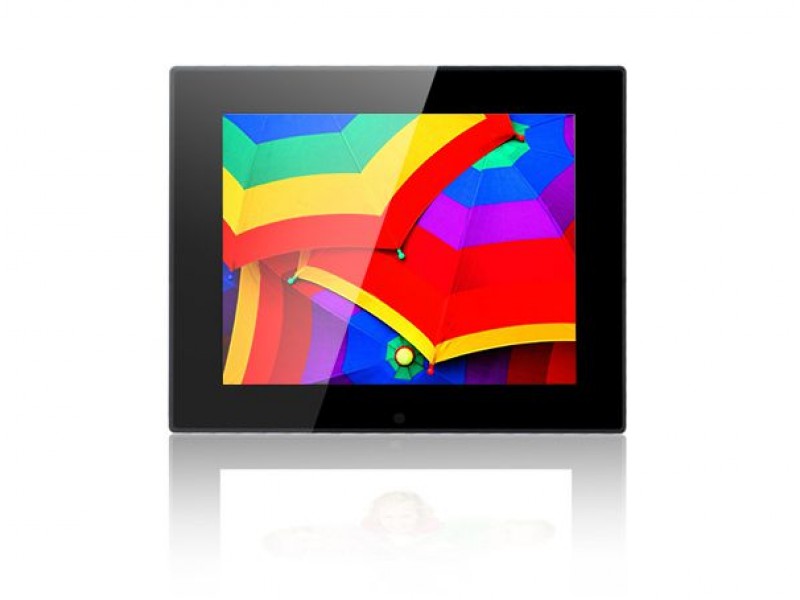

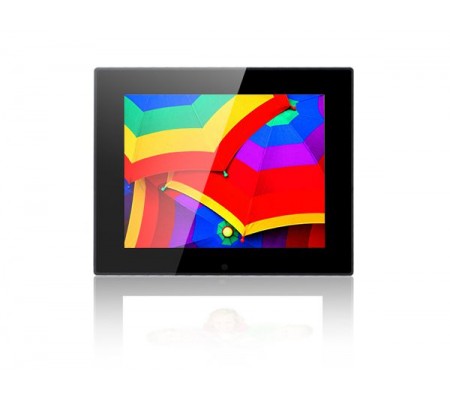

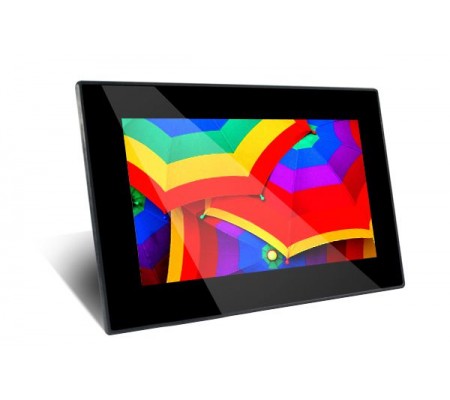

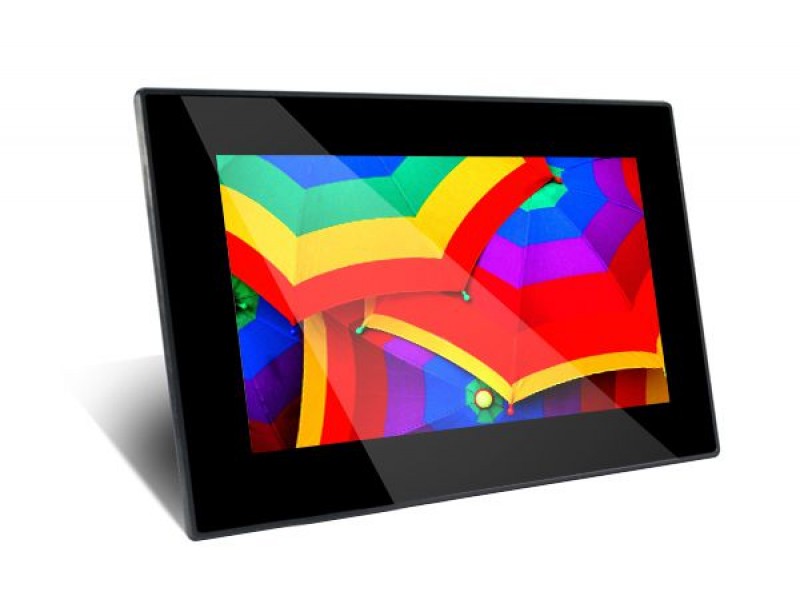

8 inch digital signage signage screen is a simplified digital signage video display, which is installed on the table, on the wall or in the window. Can be installed vertically and horizontally. The proportion of the sides of the advertising screen signage screen is 16:9.
LCD advertising player frame read files from a flash drive, and automatically show them when power connected. You only need to copy media files on a flash drive, and install it into the USB connector of the electronic signage screen – this is enough to start showing the video and photo files on the screen.
In the settings of promotional digital signage screens you can set the interval between slides: 3 s, 5 s, 10 s, 15 s, 1 min, 15 min, 1 hour. Transition effects between slides: Extension, Bottom to top, Left to right, closing the door, Fade, Horizontal crossing, and other...

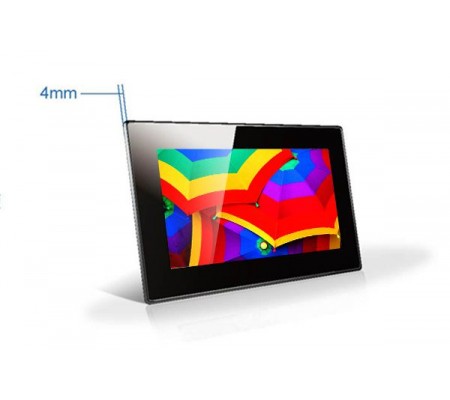

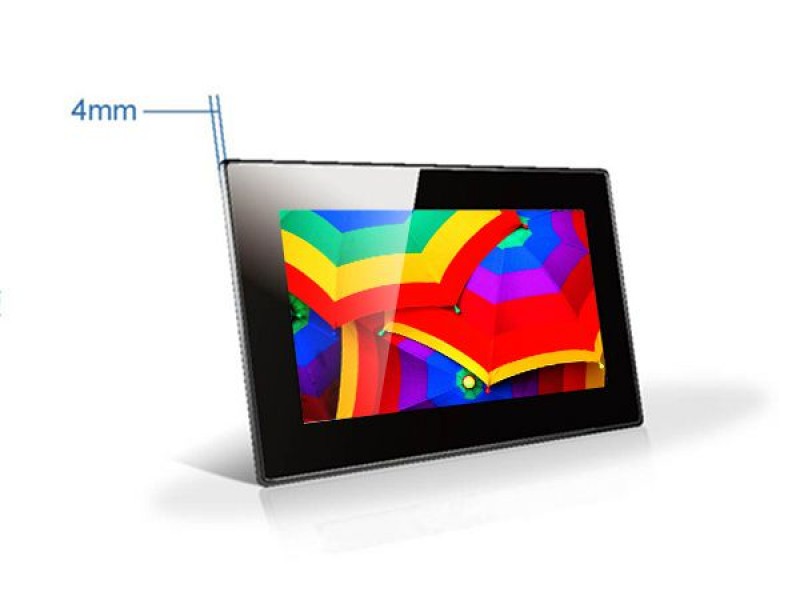

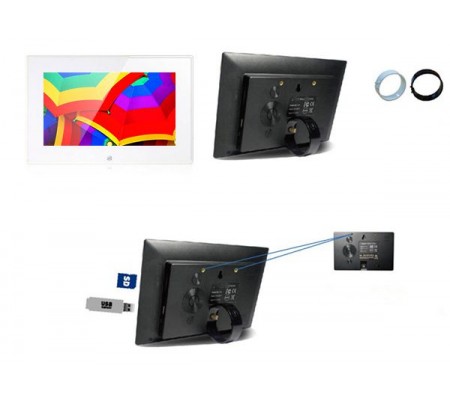

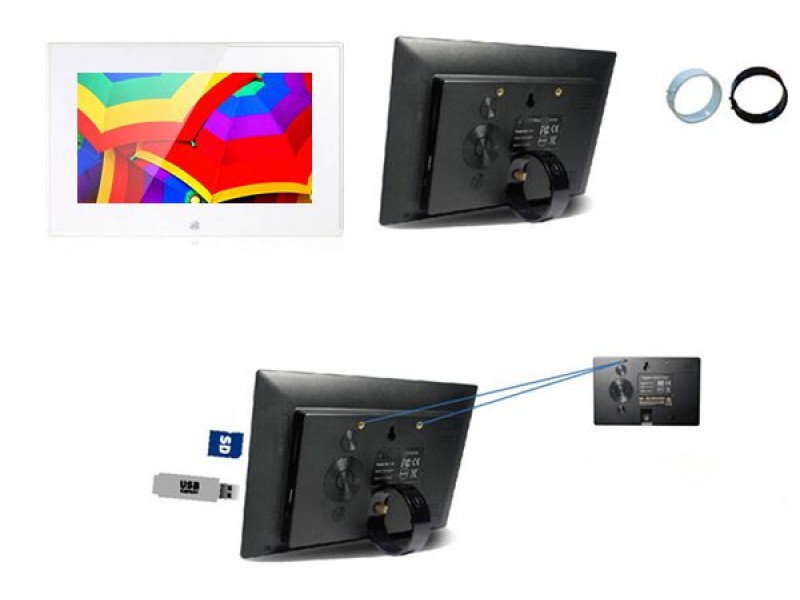

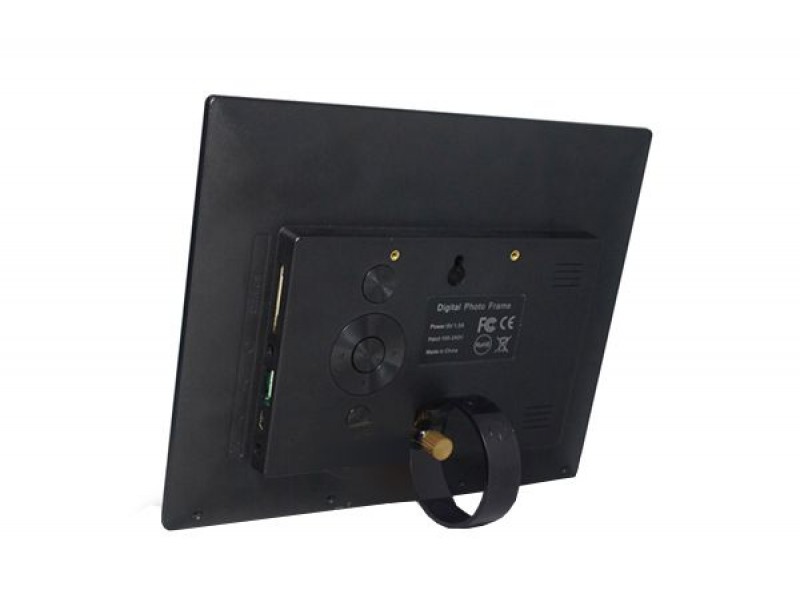

Digital advertising signage screen with built-in digital signage player have mounting for installation of advertising display on the countertop in landscape format, power adapter, remote control, manual. Digital signage signage screen supports two methods for installing on the wall: with bracket for TV standard VESA75 (holes 75x75 mm), and with traditional hooks for pictures. Black excretory edging of advertising display case of durable plastic, and glossy front side make the DISHINE-0801-BLK model attractive for installation in both classic and modern interiors.
Main functions
- Auto start playing when power cord connected, no need to do anything manually
- Repeat playlist automatically 24x7x365
- Auto restart playing after any power supply issue
- Auto power on/off by schedule
- Show clock and calendar available
Main features
- Good looking design, extra quality ABS plastic
- Can be wall mounted or installed on table, reception, shop shelf
- Anti-theft door or cover protects against memory card theft
- Multi-language OSD menu protected with password
- Built-in stereo speakers 2x2W or 2x4W
- Playlist management software available

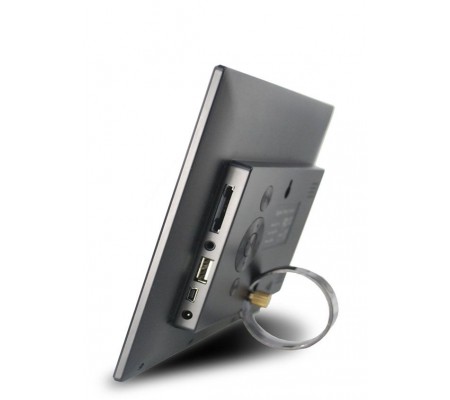

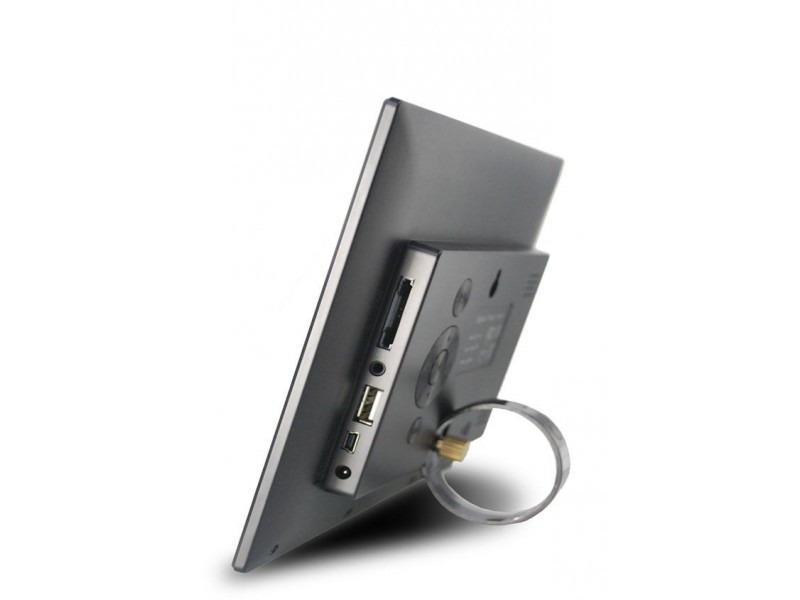

Interface
- SD flash card
- USB flash
- Audio jack
Optional
- Built-in memory by request
Specification DISHINE-0801-BLK
| General | |
| Application | Indoor Advertising monitor, Advertising display, LCD advertising player, Digital signage |
|---|---|
| Housing material | ABS Plastic |

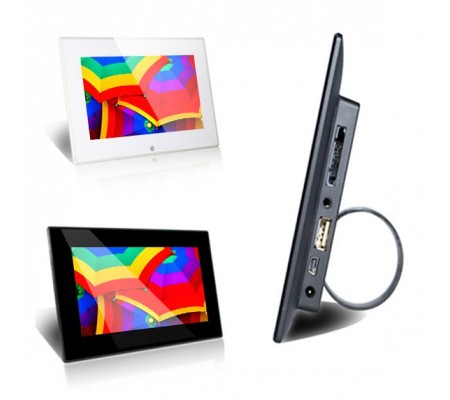

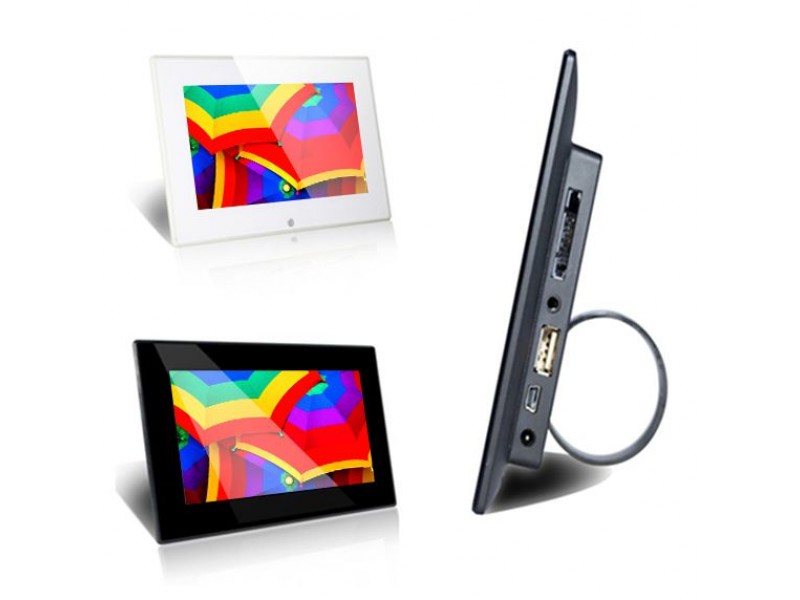

| Color | Black, White (other by request) |
| Power input | 110-250V / 5V |
| Power consumption | 5W |
| OSD language | English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ... |
| Speakers | 2x2W |
| Internal memory | No |
| Optional internal memory | 2-32GB |
| Storage temperature | -5...+45C (23...113F) |
| Operation temperature | +10...+45C (50...113F) |
| Flash memory support | SD, SDHC, MMC/MS, USB flash |
| Flash memory anti-theft | Cardreader cover with screw |

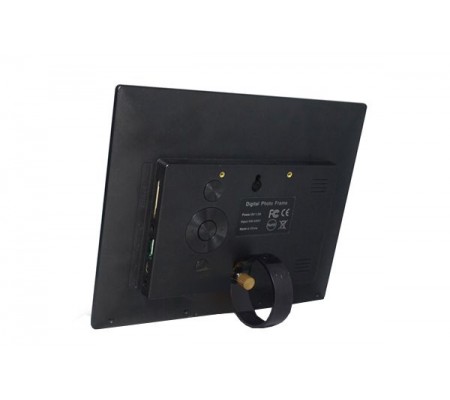

| Mount method | Wall, Stand, VESA75 Mounting |

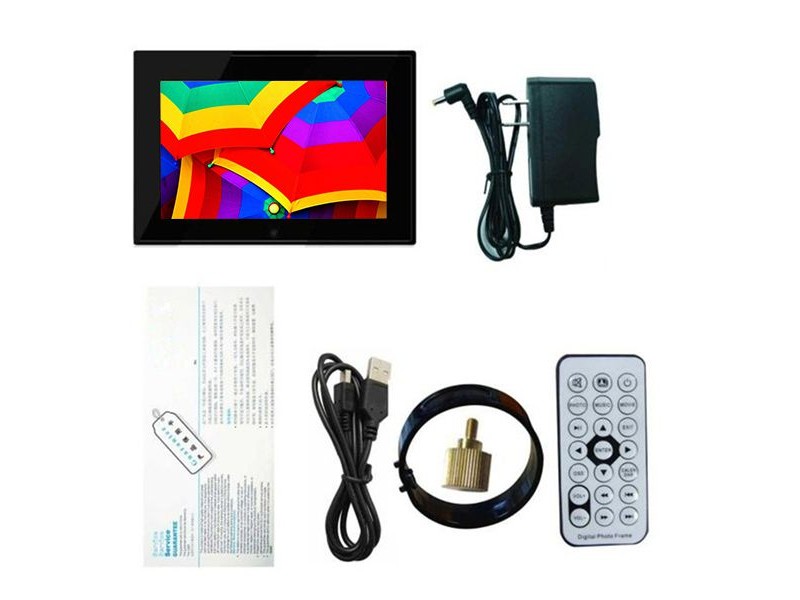

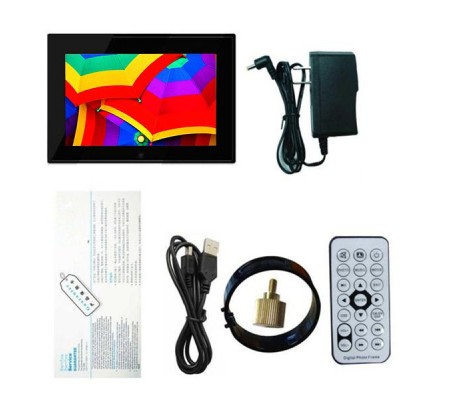

| Accessories | Stand, Power supply, Remote Control, Manual |
| May also need | SD/SDHC/MMC/MS or USB flash |
| Screen | |
| Screen size | 8 inch |
| Aspect ratio | 16:9 |
| Available sizes | 10, 12, 15, 17, 19, 22, 24, 32 inch |
| Screen protection | Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch) |
| Screen type | LCD |
| Optional screen type | LED, IPS |
| Resolution | 1024x768 |
| View angle H/V | 160/160 |
| Brightness | 250 cd/m2 |
| Contrast ratio | 300:1 |
| Supported colours | 16.7 million |
| Response time | 5 ms |
| Media support | |
| Video files | AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4 |
| Picture files | JPG, GIF, BMP |
| Audio files | MP3, WMA, OGG, WAV, AAC |
| Size and Weight | |
| Product size (mm) | by request |
| Product weight (kg) | by request |
| Carton size (mm) | by request |
| Carton G.W. (kg) | by request |
| Packing details | by request |
