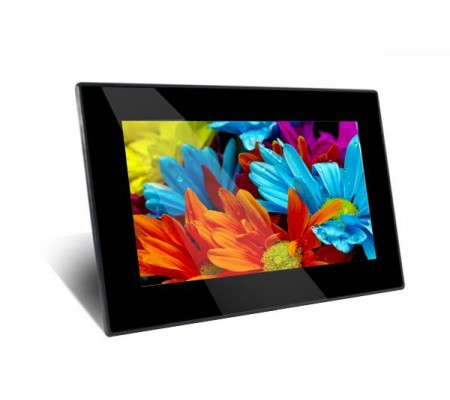

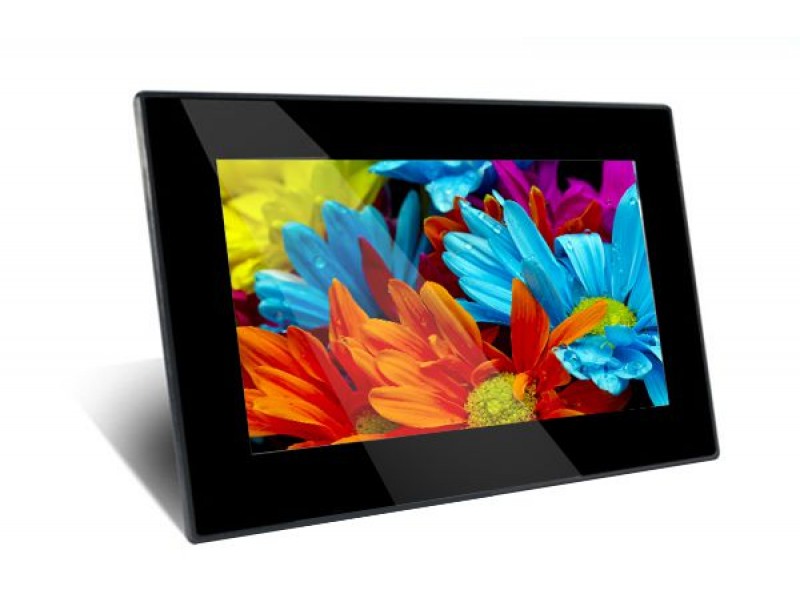

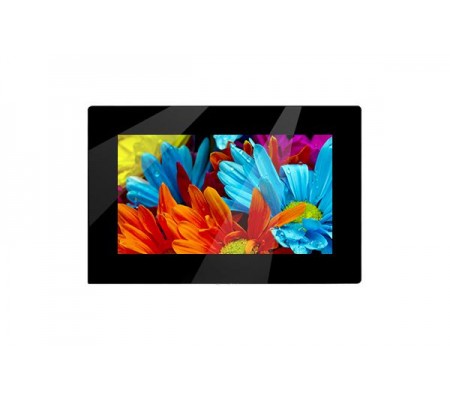

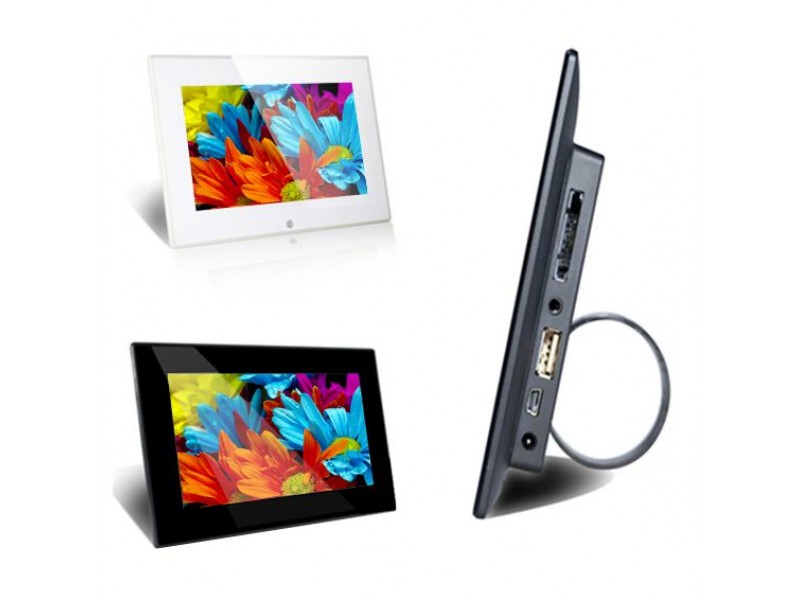

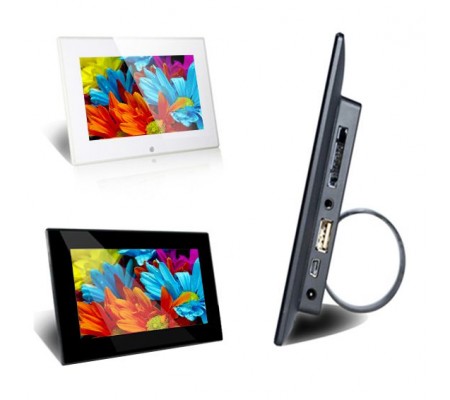

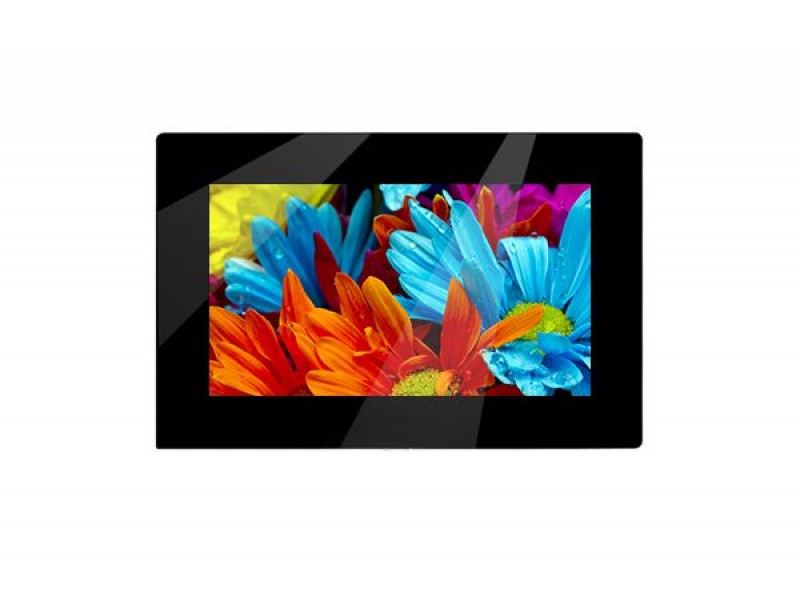

7 inch digital signage screen for showing promotional videos and slideshows automatically activated at power-up. With scheduling, automatic repeat, and other useful functions.
Promotional digital signage screen with aspect ratio 16:9 allows you to easily show normal JPG presentation slides, videos and photographs of this type. The combination of clear shapes, bright advertising display and black exterior gives this advertising display outstanding style, which allows the use of digital signage screen everywhere - from fast food restaurants to luxury hotels.
Built-in speaker of this mini advertising monitor play audio from video files, and play MP3 music files during the slide show. Updating video programs in digital advertising frame is simple - user copy files to a USB flash, and inserts the flash drive into a digital signage screen. When he connects power, built-in ad player start to read files from a flash drive and automatically show them. DISHINE-0701-BLK is all you need to play audio, video and photo files. Optionally you can order a promotional video frame DISHINE-0701-BLK with built-in memory from 2Gb up to 32Gb, which will allow user to store media files directly in this digital signage signage screen.

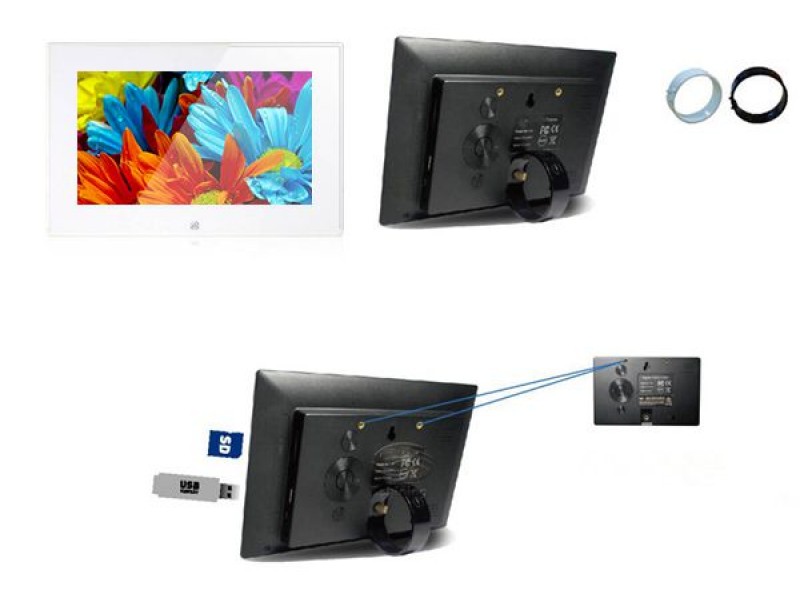

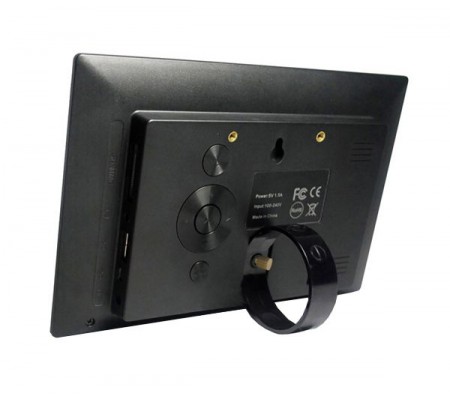

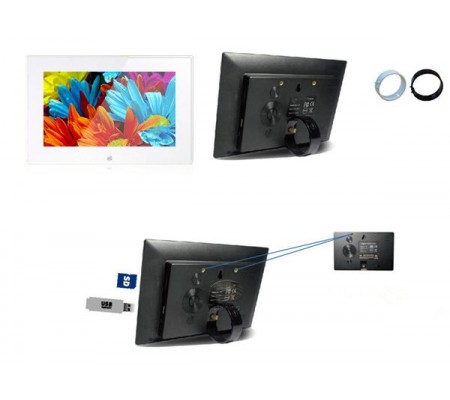

Digital signage screen supports two methods for installing on the wall: with bracket for TV standard VESA75 (holes 75x75 mm), and with traditional hooks for pictures.
Main functions
- Auto start playing when power cord connected, no need to do anything manually
- Repeat playlist automatically 24x7x365
- Auto restart playing after any power supply issue
- Auto power on/off by schedule
- Show clock and calendar available
Main features
- Good looking design, extra quality ABS plastic
- Can be wall mounted or installed on table, reception, shop shelf
- Anti-theft door or cover protects against memory card theft
- Multi-language OSD menu protected with password
- Built-in stereo speakers 2x2W or 2x4W
- Playlist management software available

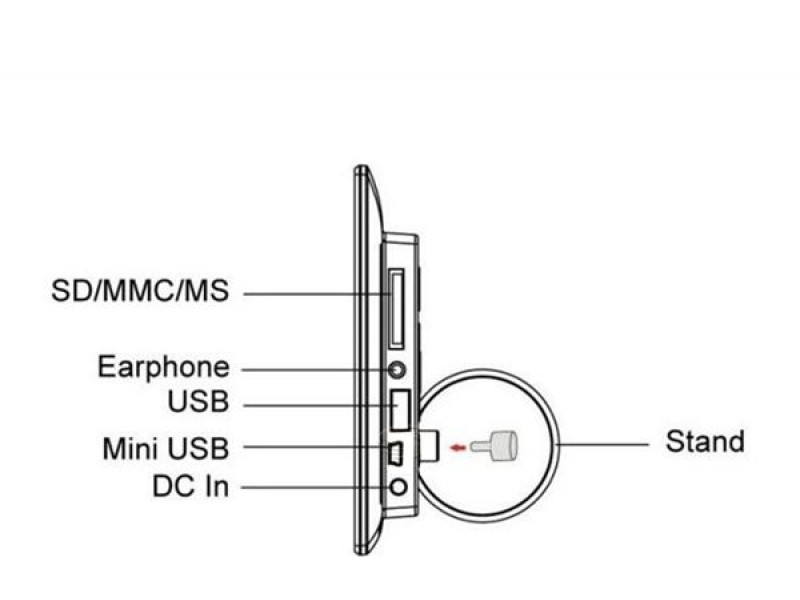

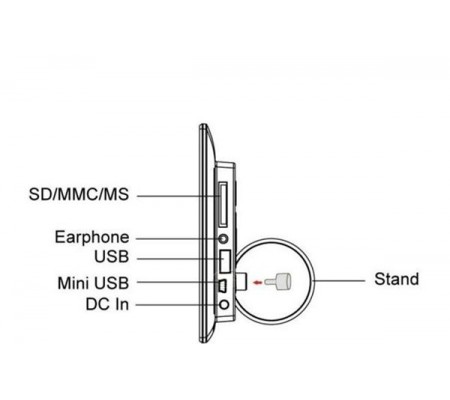

Interface
- SD flash card
- USB flash
- Audio jack
Optional
- Built-in memory by request

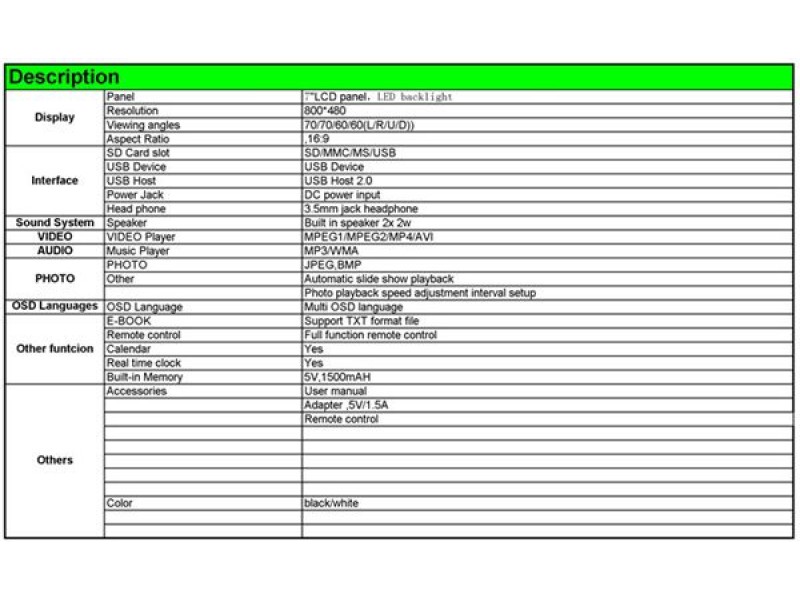

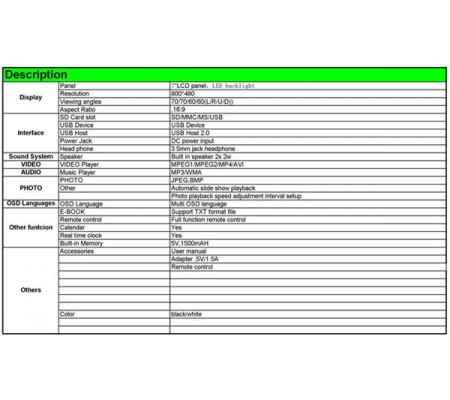

Specification DISHINE-0701-BLK
General | |
Application | Indoor Advertising monitor, Advertising display, LCD advertising player, Digital signage |
---|---|
Housing material | ABS Plastic |
Color | Black, White (other by request) |
Power input | 110-250V / 5V |
Power consumption | 5W |
OSD language | English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ... |
Speakers | 2x2W |
Internal memory | No |
Optional internal memory | 2-32GB |
Storage temperature | -5...+45C (23...113F) |
Operation temperature | +10...+45C (50...113F) |
Flash memory support | SD, SDHC, MMC/MS, USB flash |
Flash memory anti-theft | Cardreader cover with screw |
Mount method | Wall, Stand, VESA75 Mounting |

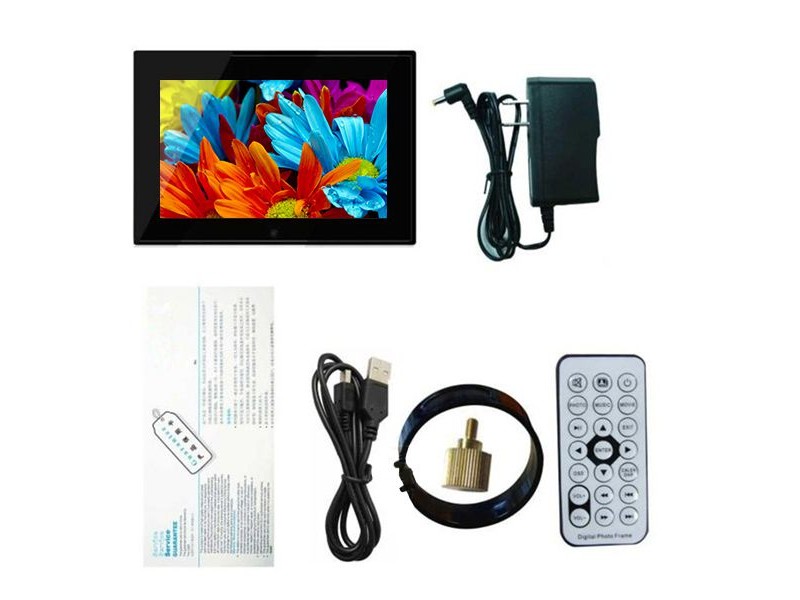

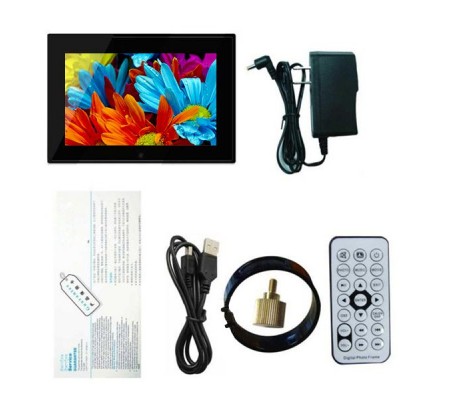

Accessories | Stand, Power supply, Remote Control, Manual |
May also need | SD/SDHC/MMC/MS or USB flash |
Screen | |
Screen size | 7.1 inch |
Aspect ratio | 16:9 |
Available sizes | 10, 12, 15, 17, 19, 22, 24, 32 inch |
Screen protection | Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch) |
Screen type | LCD |
Optional screen type | LED, IPS |
Resolution | 1024x768 |
View angle H/V | 160/160 |
Brightness | 250 cd/m2 |
Contrast ratio | 300:1 |
Supported colours | 16.7 million |
Response time | 5 ms |
Media support | |
Video files | AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4 |
Picture files | JPG, GIF, BMP |
Audio files | MP3, WMA, OGG, WAV, AAC |

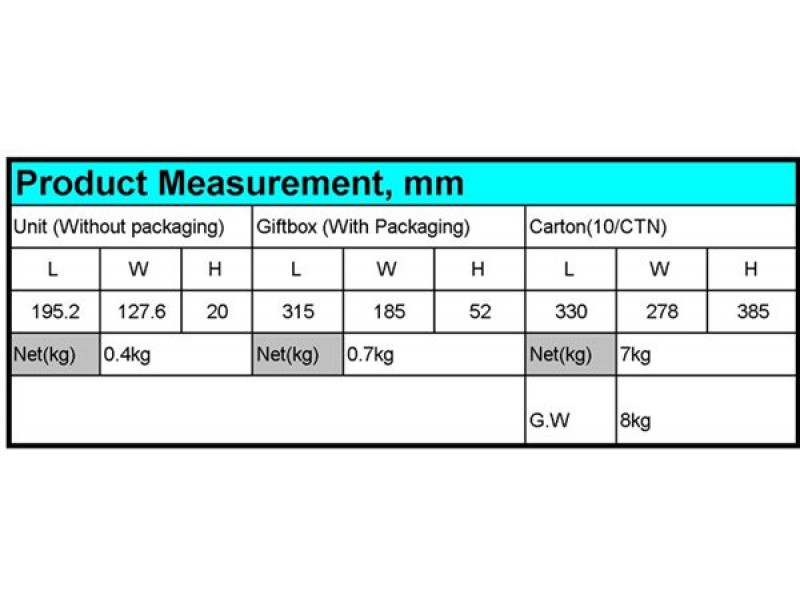

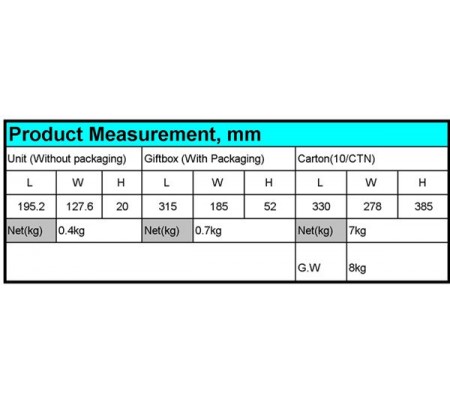

Size and Weight | |
Product size (mm) | by request |
Product weight (kg) | by request |
Carton size (mm) | by request |
Carton G.W. (kg) | by request |
Packing details | by request |
