Digital Signage vandal-proof monitor DIPANEL-5500-BLK for commercial use is usually installed on railway stations, in airports, in offices and business centres around the world. It is reliable for day and night operation, contain advanced LED display with professional Digital Signage player, protected by a metal casing and glass. In addition to the player, you can connect an external video sources such as computers, media players, control systems to the monitor using VGA, HDMI, or DisplayPort. 55 inch Digital Signage displays allows you to use it's large screen as

  • Display for Digital signage advertising in shops and waiting rooms
  • A video screen on trolleybuses and trams stations
  • Advertising monitor for elevators and hallways of office centers
  • Screen for POS materials
  • HoReCa advertising LCD player
  • Electronic kiosk or digital display

There is interactive version of the information display for use in supermarkets and retail outlets, museums and exhibitions is available. Thanks to the option with motion sensor, digital advertising monitor DIPANEL-4200-BLK can determine the movement of a person who is nearby, and to personalize the advertising message. Interaction can also be performed with six clearly visible touch panel keys. When equipped with the advertising display multitouch touchscreen screen any user will be able to interact directly with all information materials – videos, photos and pictures and automatically receive the latest information about discounts, coupons and promotions. This digital signage display may have built-in Android, Windows, or Linux computer.

Basic functions of LCD ad player
Auto start of displaying video at power-up, no need to turn on manually. Automatic on and off on a schedule. Support Full HD video, image files, MP3, lossless audio. Automatic playlist repeat around the clock all year round. Automatic restart in case of power failure. Scroll text with the color setting and size of letters and the substrate, the Update of information on the SD flash card c USB flash, view Statistics of mediaflow, Optional remote control via WIFI, 3G, 4G Internet. You can update your playlist, media, schedule. Watch full list of this model functions...

Main features of DIPANEL Digital Signage Display
Rugged vandal-proof metal housing with simple design. Can be installed on the wall, the ceiling, on the Desk or on a shelf of a store. Can be used as a monitor for bus, taxi, metro cars, and train stations. Equipped with transparent screen protection made of tempered glass or plastic. Flash card, and USB flash is lockable to protect against theft. Multilingual settings menu. Built-in speakers 2x2W or 2x4W, see the full list of features...

Options of DIPANEL display series

  • Option: Remote display management via LAN/Internet remote updating of media files and playlists
  • Option: Built-in Android or Linux PC
  • Option: Built-in Windows PC
  • Option: Touch screen (touchscreen)
  • Option: Motion sensor
  • Option: Hot and cold conditions version
  • Option: Ultrabright screen for visibility in sunlight
  • Option: I/O Interface RS232
  • Option: Built-in memory
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of options...


Interfaces:

  • SD flash card
  • CF flash card
  • USB flash
  • Option: AV input(CVBS)
  • Option: HDMI video + audio
  • Option: DisplayPort
  • Option: VGA / RGB video
  • Option: Audio input or output
  • Option: Antenna (coaxial cable)
  • Option: Internet – Wire RJ45
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of interfaces...

Specification DIPANEL-5500-BLK

General
Application Bus display, Transport advertising screen, Indoor Advertising monitor, LCD advertising player, Digital signage, Standalone LCD ad player, Advertising display
Housing material Metal
Color Black, White (other by request)
Power input 9-30V for transport, 100-300V for indoor
Power consumption 70W
Operating System AdPlayer / Windows / Linux / Android
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ...
Speakers 2x4W
Internal memory No
Optional internal memory 2-32GB
Storage temperature -35...+45C (-15...113F)
Operation temperature -25...+45C (-13...113F)
Flash memory support SD, SDHC, MMC/MS, USB flash

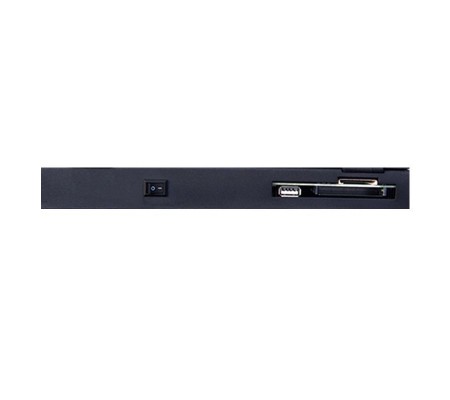

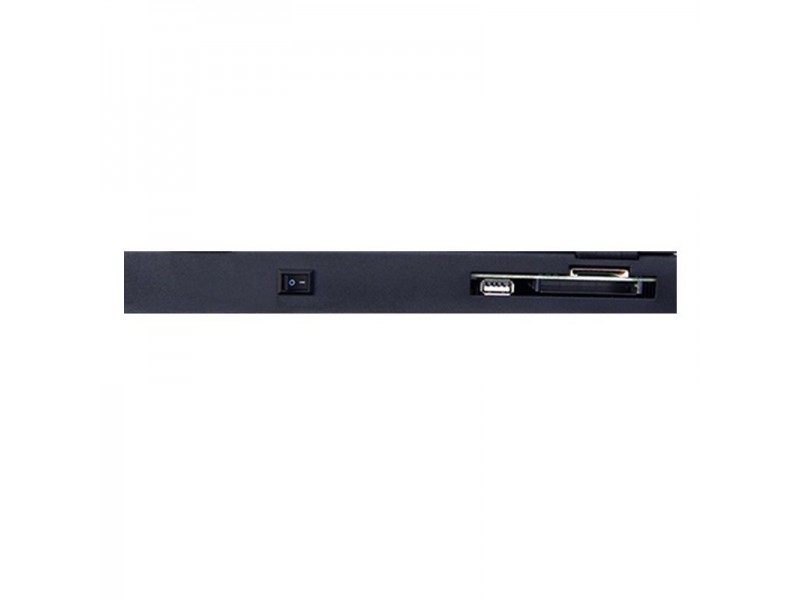

Flash memory anti-theft Cardreader door with lock

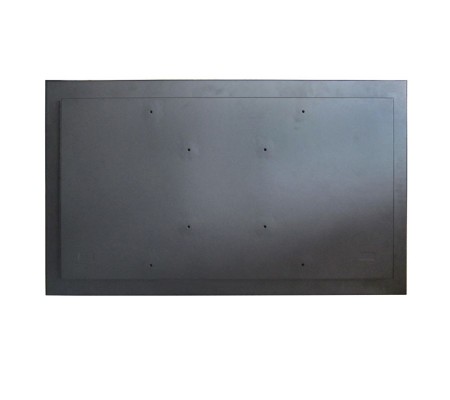

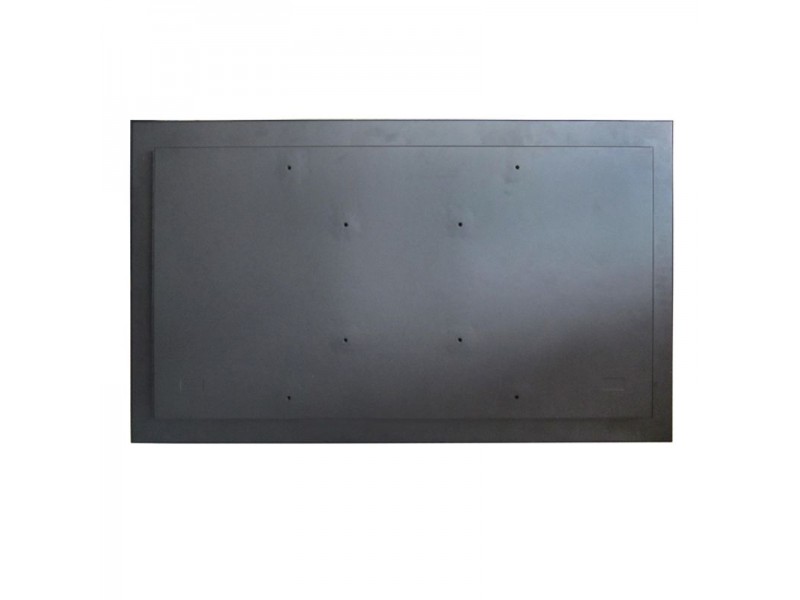

Mount method Wall, Сeiling, Handrail, Stand, VESA75/100 Mounting
Accessories Mounting kit, Remote Control, Manual
May also need SD/SDHC/MMC/MS or USB flash
Screen
Screen size 55 inch
Aspect ratio 16:9
Available sizes 10, 12, 15, 17, 19, 22, 24, 32, 42, 55, 65 ,70 inch
Screen protection Tempered glass or Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch)
Screen type LCD
Optional screen type LED, IPS
Resolution 1920x1080
View angle H/V LCD:85/85/85/65 LED:88/88/88/88
Brightness 300 cd/m2
Contrast ratio 900:1
Supported colours 16.7 million
Response time 3 ms
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4, H264, Matroska MKV (FullHD)
Picture files JPG, GIF, BMP, PNG
Audio files MP3, WMA, OGG, WAV, AAC, FLAC
Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
