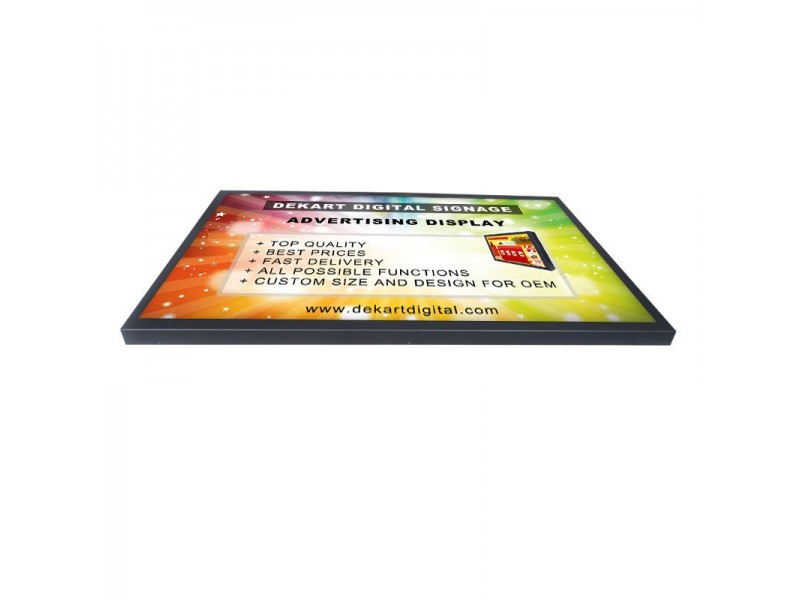

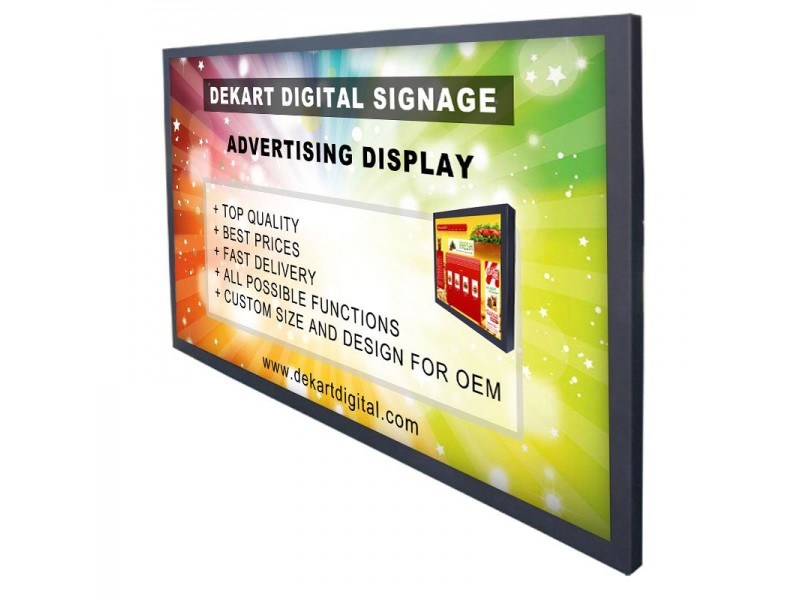

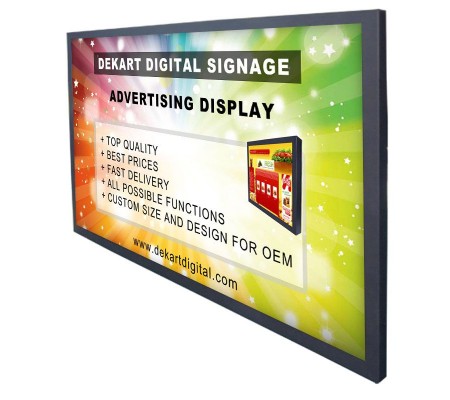

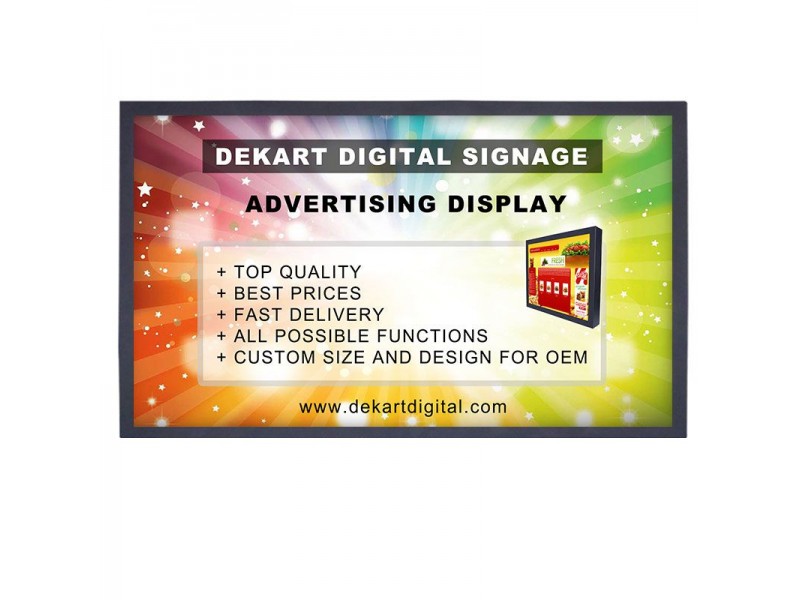

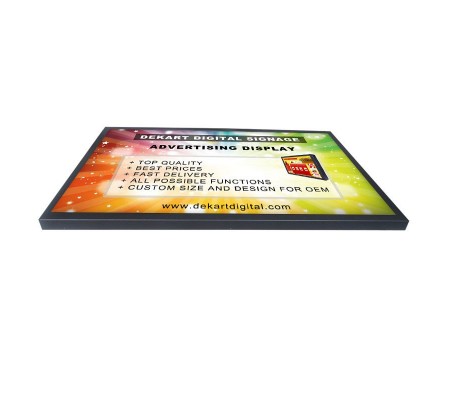

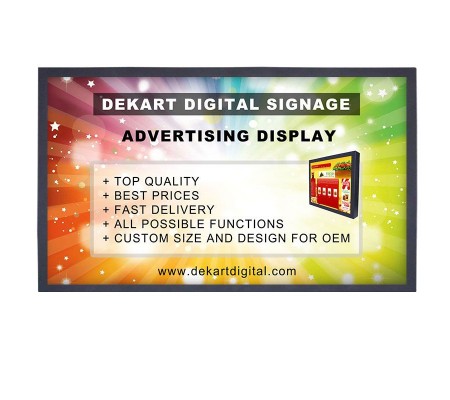

Big vandal-proof TV monitor in a stylish package DIPANEL-4200-BLK has a diagonal screen size of 42 inch with built-in flash advertising player for continuous display of promotional videos, slideshows and information messages. The display is covered a glossy tempered glass or polycarbonate to protect the screen from bumps and scratches. This info-screen is easy to clean, hard to scratch, so it is always presentable. Digital signage display DIPANEL-4200-BLK is ideal for showing promotional videos and graphics, menus of restaurants and cafes, schedules of events. A very popular use of this adware is to display images and videos in places of a congestion of people - in museums, office and business centers, airports, exhibition halls, fitness clubs, various competitions and conferences. The advertising display can be mounted on a wall or on a stand in two positions – horizontally and vertically as digital idis. Bright displays and menus, delicious videos, or pop up advertising messages on the display will actively attract the audience's attention.
DIPANEL-4200-BLK Screen for Digital signage can optionally be connected to the Internet for remote management of advertising data and schedule editing. This information and ad display have professional Digital Signage option that connects Internet (RJ45 cable), or uses modern technology of wireless Internet Wi-Fi, 3G, 4G. This is the most practical way to manage display remotely.
DIPANEL-4200-BLK Screen can be equipped with touch screen, turning advertising display to an interactive display or digital kiosk.


Basic functions of LCD ad player

Auto start of displaying video at power-up, no need to turn on manually. Automatic on and off on a schedule. Support Full HD video, image files, MP3, lossless audio. Automatic playlist repeat around the clock all year round. Automatic restart in case of power failure. Scroll text with the color setting and size of letters and the substrate, the Update of information on the SD flash card c USB flash, view Statistics of mediaflow, Optional remote control via WIFI, 3G, 4G Internet. You can update your playlist, media, schedule. Watch full list of this model functions...


Main features of DIPANEL Digital Signage Display

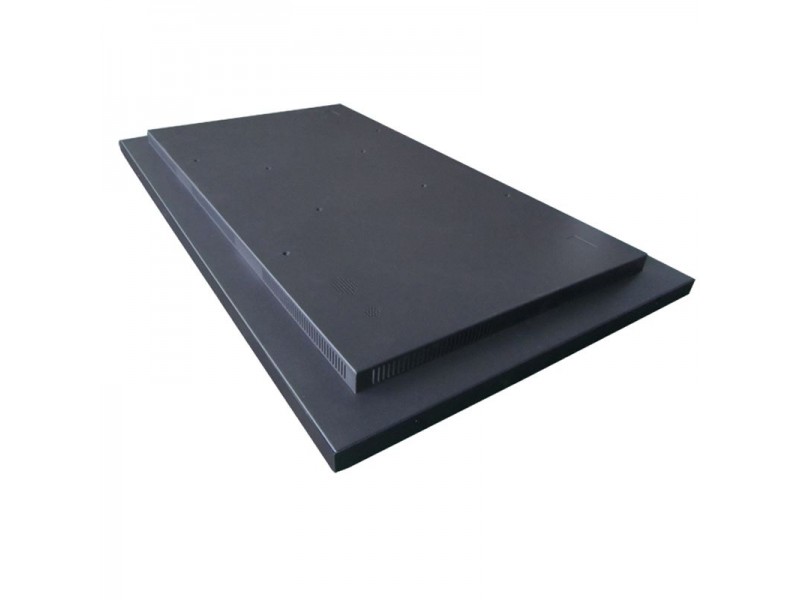

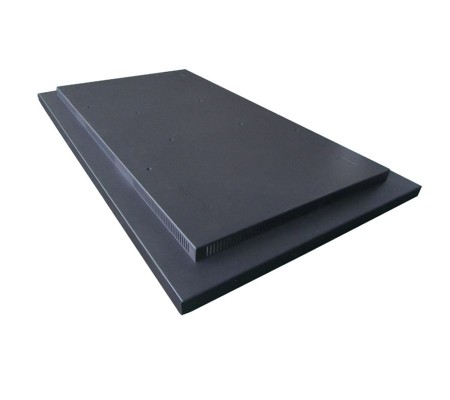

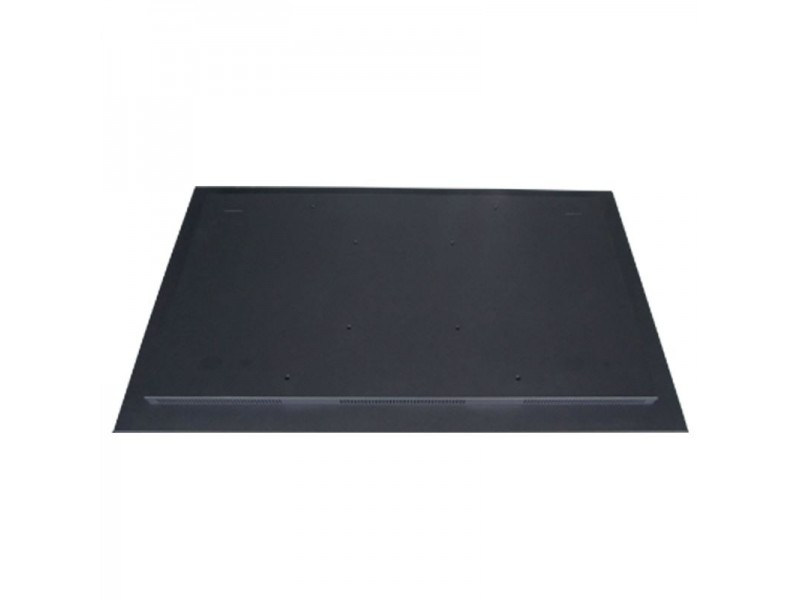

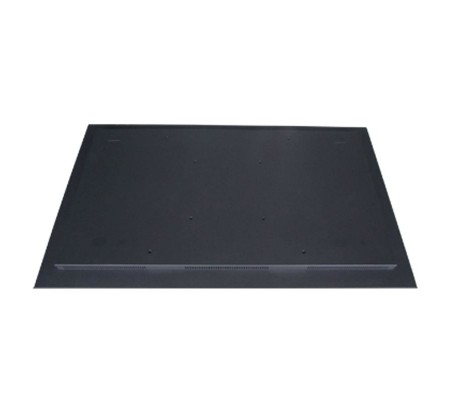

Rugged vandal-proof metal housing with simple design. Can be installed on the wall, the ceiling, on the Desk or on a shelf of a store. Can be used as a monitor for bus, taxi, metro cars, and train stations. Equipped with transparent screen protection made of tempered glass or plastic. Flash card, and USB flash is lockable to protect against theft. Multilingual settings menu. Built-in speakers 2x2W or 2x4W, see the full list of features...


Options of DIPANEL display series

  • Option: Remote display management via LAN/Internet remote updating of media files and playlists
  • Option: Built-in Android or Linux PC
  • Option: Built-in Windows PC
  • Option: Touch screen (touchscreen)
  • Option: Motion sensor
  • Option: Hot and cold conditions version
  • Option: Ultrabright screen for visibility in sunlight
  • Option: I/O Interface RS232
  • Option: Built-in memory
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of options...



Interfaces:

  • SD flash card
  • CF flash card
  • USB flash
  • Option: AV input(CVBS)
  • Option: HDMI video + audio
  • Option: DisplayPort
  • Option: VGA / RGB video
  • Option: Audio input or output
  • Option: Antenna (coaxial cable)
  • Option: Internet – Wire RJ45
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of interfaces...

Specification DIPANEL-4200-BLK

General
Application Bus display, Transport advertising screen, Indoor Advertising monitor, LCD advertising player, Digital signage, Standalone LCD ad player, Advertising display
Housing material Metal
Color Black, White (other by request)
Power input 9-30V for transport, 100-300V for indoor
Power consumption 45W
Operating System AdPlayer / Windows / Linux / Android
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ...
Speakers 2x4W
Internal memory No
Optional internal memory 2-32GB
Storage temperature -35...+45C (-15...113F)
Operation temperature -25...+45C (-13...113F)
Flash memory support SD, SDHC, MMC/MS, USB flash
Flash memory anti-theft Cardreader door with lock
Mount method Wall, Сeiling, Handrail, Stand, VESA75/100 Mounting
Accessories Mounting kit, Remote Control, Manual
May also need SD/SDHC/MMC/MS or USB flash
Screen
Screen size 42 inch
Aspect ratio 16:9
Available sizes 10, 12, 15, 17, 19, 22, 24, 32, 42, 55, 65 ,70 inch
Screen protection Tempered glass or Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch)
Screen type LCD
Optional screen type LED, IPS
Resolution 1920x1080
View angle H/V LCD:85/85/85/65 LED:88/88/88/88
Brightness 300 cd/m2
Contrast ratio 900:1
Supported colours 16.7 million
Response time 3 ms
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4, H264, Matroska MKV (FullHD)
Picture files JPG, GIF, BMP, PNG
Audio files MP3, WMA, OGG, WAV, AAC, FLAC
Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
