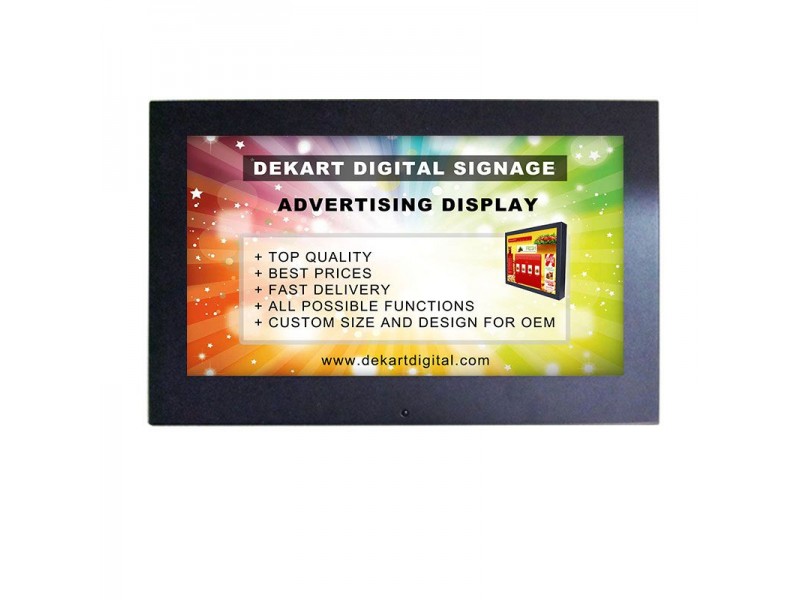

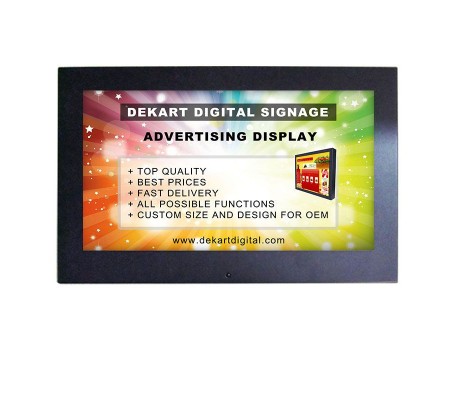

Digital Signage Advertising display with 7 inch screen DIPANEL-0700-BLK is a compact TV for ads with embedded video player in a metal case. This vandal-proof display has a simple design, easy mounting, and works automatically around the clock or by schedule. DIPANEL-0700-BLK is used as a Digital Signage system for store shelves, beauty salons, entertainment centers. This advertising display is also conveniently mounted on promotional stands with leaflets, magazines and small goods. The video is shown from SD or USB flash. Unlike these signage screens digital advertising displays have remote upgrade through the Internet by Wifi, 3G. You can use this model as

  • Digital signage advertising display on the shelf of the store or near the showcase
  • Advertising screen for taxi. Can be placed between the front seats
  • Commercial display in the beauty shop on the shelf or on the mirror
  • Promotional display in the window of the pharmacy or cosmetics shop

Store managers don't need to manage DIPANEL-0700-BLK as it switch on or off itself, in accordance with internal settings of timer. In fact, it is a simple advertising monitor with digital signage player, which features are compact design, and low price. All features advertising monitor – auto-play and repeat video in a circle are available.
Promotional videos, banners with special offers and promotions, slide show with satisfied customers photos can be displayed without the use of computer and other extra equipment. Just record the video and image files on a flash drive, and install it in this promotional display. Insert digital signage display power cord into a wall outlet and watch your videos! For full protection of the advertiser display provides the mechanism for the protection of removable flash drives from theft – door with lock. Call us now for details and delivery time!


Basic functions of LCD ad player

Auto start of displaying video at power-up, no need to turn on manually. Automatic on and off on a schedule. Support Full HD video, image files, MP3, lossless audio. Automatic playlist repeat around the clock all year round. Automatic restart in case of power failure. Scroll text with the color setting and size of letters and the substrate, the Update of information on the SD flash card c USB flash, view Statistics of mediaflow, Optional remote control via WIFI, 3G, 4G Internet. You can update your playlist, media, schedule. Watch full list of this model functions...


Main features of DIPANEL Digital Signage Display

Rugged vandal-proof metal housing with simple design. Can be installed on the wall, the ceiling, on the Desk or on a shelf of a store. Can be used as a monitor for bus, taxi, metro cars, and train stations. Equipped with transparent screen protection made of tempered glass or plastic. Flash card, and USB flash is lockable to protect against theft. Multilingual settings menu. Built-in speakers 2x2W or 2x4W, see the full list of features...


Options of DIPANEL display series

  • Option: Remote display management via LAN/Internet remote updating of media files and playlists
  • Option: Built-in Android or Linux PC
  • Option: Built-in Windows PC
  • Option: Touch screen (touchscreen)
  • Option: Motion sensor
  • Option: Hot and cold conditions version
  • Option: Ultrabright screen for visibility in sunlight
  • Option: I/O Interface RS232
  • Option: Built-in memory
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of options...



Interfaces:

  • SD flash card
  • CF flash card
  • USB flash
  • Option: AV input(CVBS)
  • Option: HDMI video + audio
  • Option: DisplayPort
  • Option: VGA / RGB video
  • Option: Audio input or output
  • Option: Antenna (coaxial cable)
  • Option: Internet – Wire RJ45
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of interfaces...

Specification DIPANEL-0700-BLK

General
Application Bus display, Transport advertising screen, Indoor Advertising monitor, LCD advertising player, Digital signage, Standalone LCD ad player, Advertising display
Housing material Metal
Color Black, White (other by request)
Power input 9-30V for transport, 100-300V for indoor
Power consumption 8W
Operating System AdPlayer / Windows / Linux / Android
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ...
Speakers 2x4W
Internal memory No
Optional internal memory 2-32GB
Storage temperature -35...+45C (-15...113F)
Operation temperature -25...+45C (-13...113F)
Flash memory support SD, SDHC, MMC/MS, USB flash

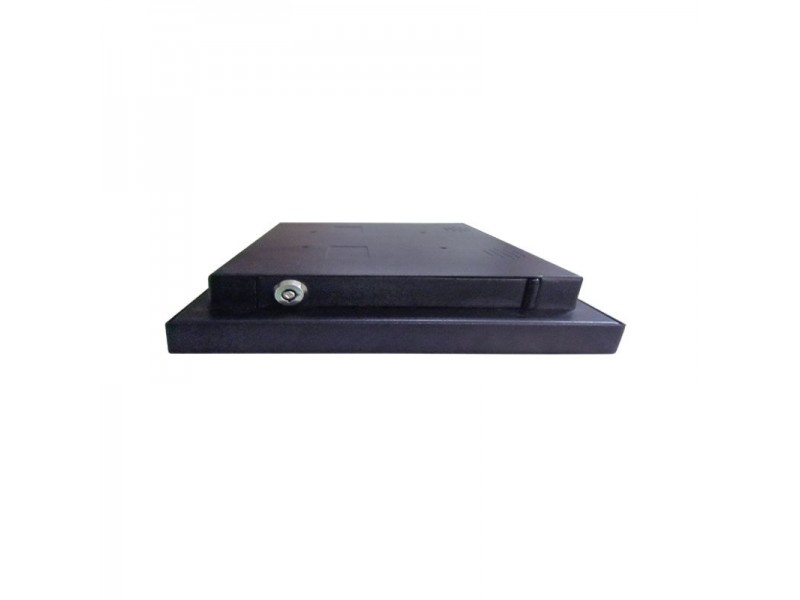

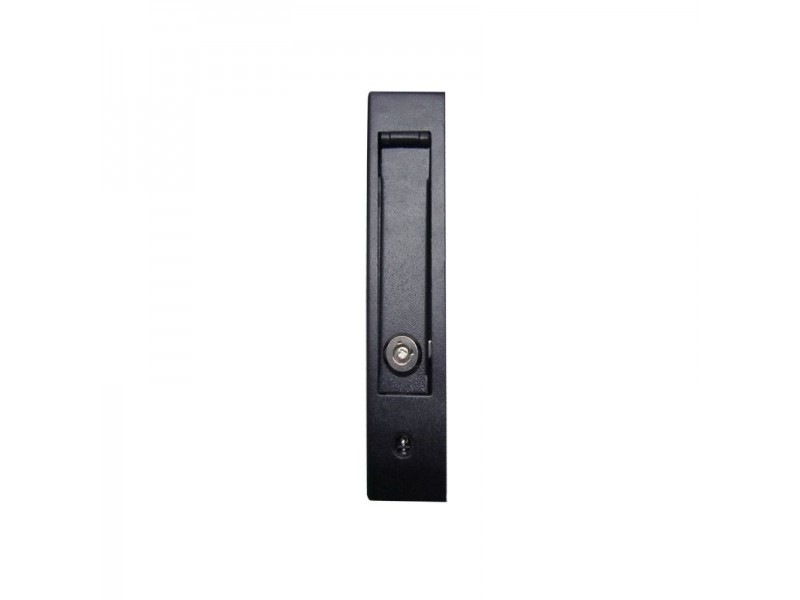

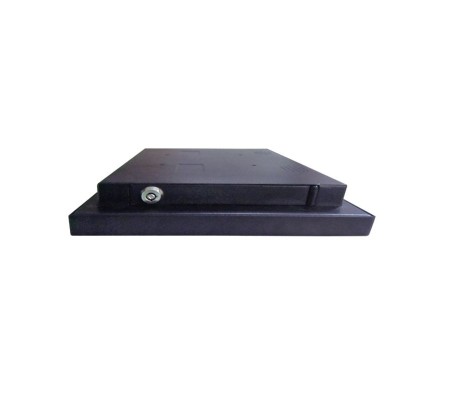

Flash memory anti-theft Cardreader door with lock
Mount method Wall, Сeiling, Handrail, Stand, VESA75Mounting
Accessories Mounting kit, Remote Control, Manual
May also need SD/SDHC/MMC/MS or USB flash
Screen
Screen size 7 inch
Aspect ratio 4:3
Available sizes 10, 12, 15, 17, 19, 22, 24, 32, 42, 55, 65 ,70 inch
Screen protection Tempered glass or Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch)
Screen type LCD
Optional screen type LED, IPS
Resolution 800x600
View angle H/V 170/168
Brightness 200 cd/m2
Contrast ratio 900:1
Supported colours 16.7 million
Response time 6 ms
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4, H264, Matroska MKV (FullHD)
Picture files JPG, GIF, BMP, PNG
Audio files MP3, WMA, OGG, WAV, AAC, FLAC
Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
